Male Cable 12 Pin Waterproof Connector Wire To Board For Signal Transmission

Quick Details of 8Pin waterproof connector

This M19 model connectors is specialized for various power signal comblined applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.

Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.

Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.

Main Features

• Push lock quick release system

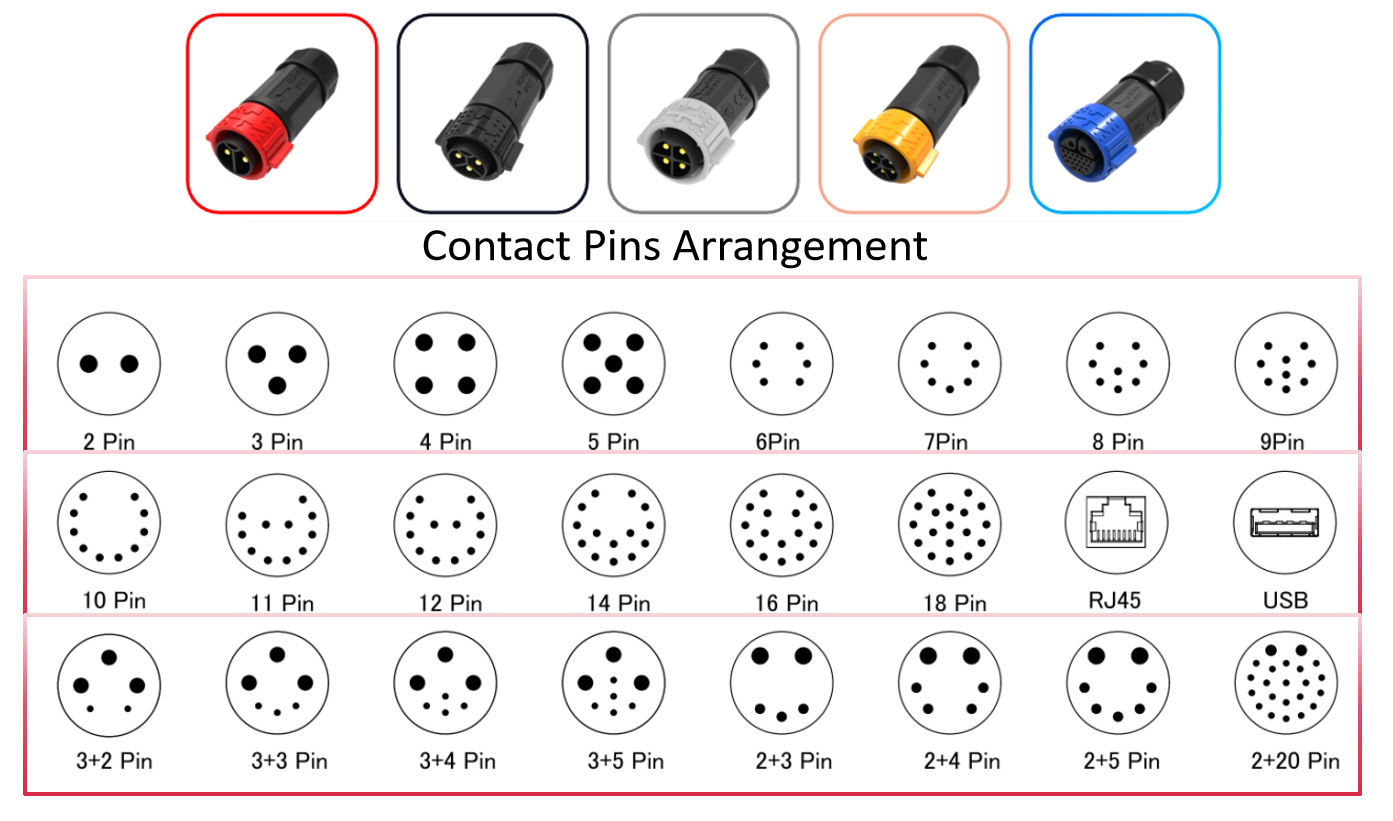

• Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
• 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
• 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
• Field assembly version:both wire to wire and wire to board options
• Current rated 20A for long time working
• Cable assembly service supported, welcome to custom
• OEM/ODM welcome

Application industries

• Communications Application
• product coding machines
• inventory product coding
• inkjet systems
• Solar System
• industrial inkjet equipment
• Electric power equipment
• Laboratory forensic&pathology equipment
• Communications equipment
• Heavy machinery

Production Dimension

More Technical Details

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What is rated Current?

A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.

Q3:How to choose the suitable connector?

A3: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style need to pre-cable or not. If needed,then confirm the next.
* Confirm Cable guage
* Confirm Cable Length and Material.

Shenzhen Ulinkcon Co., Ltd. is a leading company specialized in designing and manufacturing industrial waterproof circular connectors, power signal connectors.Based on its high degree of precision, high-quality automatic insertion & self-locking system, our products are widely used in a variety of challenging environments and situations, such as, LED screen industry, medical equipment, industrial control, detection and measurement equipment, AV systems, broadcast television, telecommunications industry, the nuclear industry, military industry ,photolvatic solar,energy store and other fields.

Located in Shenzhen China,own more than 200 people's team,4000 square meters factory,varites of test equipments of environment,electric and machinery 3 aspects.We povide waterproof high-current connectors and offer the customized connectors and cable assembly service.

We adhere to such principles as customer satisfication first, reslut-orientation,pursuit of the limit,keep accounblility and being honest. And we sincerely look forward to the new and old customers' patronage and we will be dedicated to the most outstanding product quality and the most reasonable processing cycle, to provide you with the most satisfactory service.
