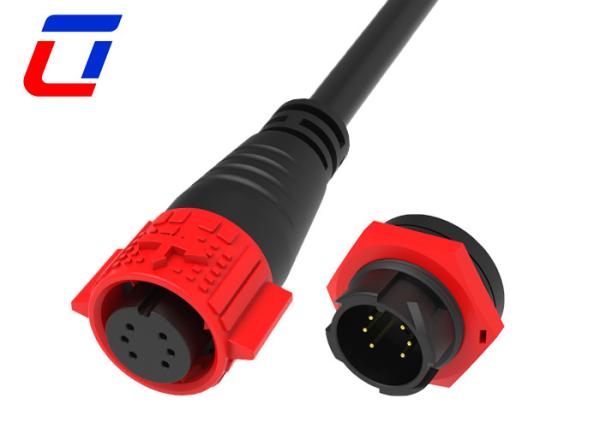

6 Pin Low Power 0.5 SQMM Wateproof Male Female Cable Connector IP67
Quick Description
This model connectors is specialized for various Power Signal
applications, easy ooperation design in push locking system, just
need a second to insert, then it will lock automatically.
In This model connector, Power & Singal together in one set design
is getting more and more popular to many device, which solve the
power and signal connector separated using perfectly, especially
for the space limited application.
Cable assembly available for Multi pin Connectors is supported in
Ulinkcon,just please share cable request in details, custom service
available.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal
combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for
signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
More Specification
1. Use alloy external protective material to effectively reduce
electromagnetic and signal RF interference generated by external
high current.
2. Four-point spiral locking with military standard.
3. Optional shell color to meet different environmental
requirements.
4. 2-5PIN power supply, 6-22PIN signal is optional.
5. Rated current: 5A/12A/20A rms.
6. The IP67 protection level when mated
| Electrical Parameters |
| Number of Poles | 6Pin |
| Current Rating | 5 Amax. |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) when mated |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters |
| Voltage Rating | 300VAC max |
| Current Rating | 5A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
Design Sketch
FAQ
1. Q: How can you guarantee the production quality ?
A:Our production quality follow ISO9001 We have 20years experience
of QC team.We have strictly quality control system in our
production process. We have 4times inspection for each finished
product before package Third part in-spection accepxable.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: When you ship my order?
A:Normally 2-3 days after receiving your payment, but it can be
negotiated based on order qty and production schedule.
4. Q: Can I have custom label?
A:Yes,of course,you can make you own private label and package,if
you need to design the packaging ,we also have professionaldesigner
to serve you.
